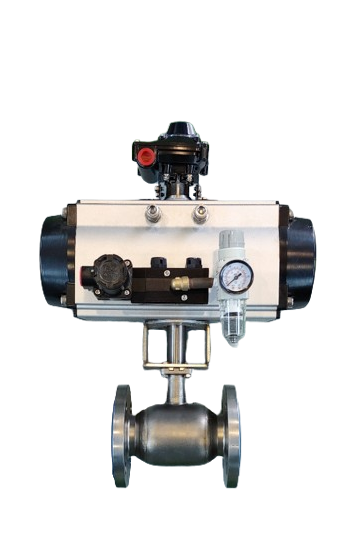

공압식 바디일체형 볼밸브

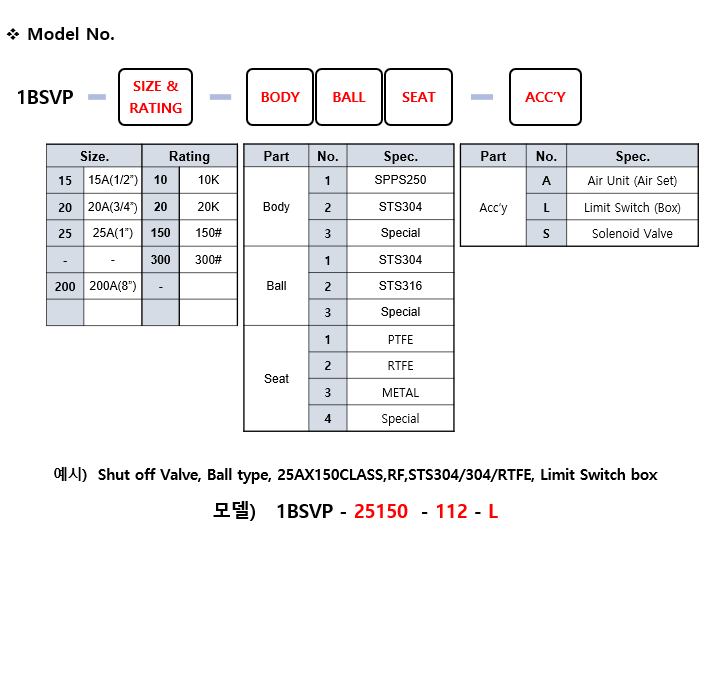

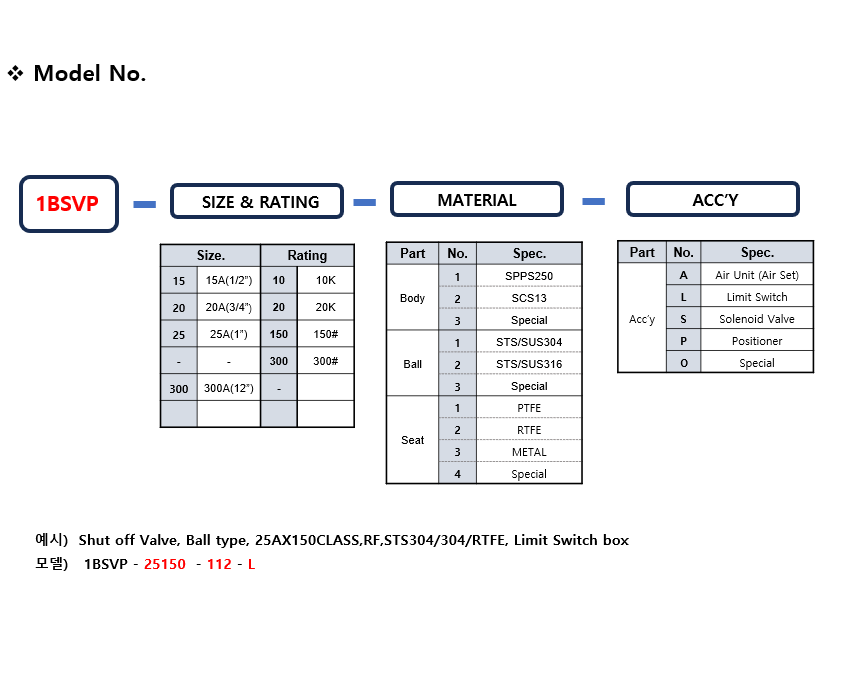

BODY 일체형으로 외부 LEAK가 없음- Model
1BSVP
- Size
15A (1/2in) - 200A (8in)
- End Conn.
Flange Type
- Flange Rating
KS/JIS 10K, 20K, ANSI 150CLASS, 300CLASS
- Material
BODY-SPPS250 or STS304 / BALL-STS304 / SEAT-TEFLON
- Actuator Type
Pneumatic Actuator (Air Fail Open, Air Fail Close, Air Fail Last)
- Temp. / Fluid
~ max. 120℃ / Water,Air,Oil
상세설명
